Section 10
Other Functions

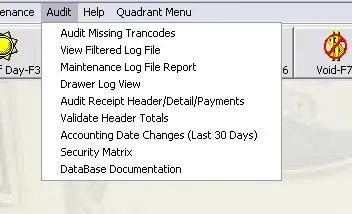

RASWIN has additional functions that allow you to audit your transaction data. These are mostly found on the AUDIT MENU, which will be available to you if your security level is high enough to enable this function. The Audit Menu contains the following options:

Audit Missing Tran Codes

This function checks the transaction codes actually used in your database against the codes that exist in your transaction codes table. If any are found to be missing, it will provide a list of the missing codes.

View Filtered Log File

The view log file option displays the current day's log file (or one for another date) on the screen. The data in the logfile can be helpful in tracing down program errors.

Maintenance Log File Report

This report permits you to request a display of all table maintenance activity for any specified range of dates. It is not normally used except when changes made have caused something 'that used to work to stop working as before due to erroneous settings. The maintenance log records 'before' and 'after' setting values for your tables so you can see what the old values were.

Drawer Log View

RASWIN (optionally) logs all non-transaction related drawer opening activity. When the cashier selects the open drawer option from the main menu the program makes an entry in the drawer log recording the date and time, the drawer number, and the register number. When you run the Drawer Log View report, you specify the range of dates desired and the program will prepare a list of all the drawer opening for that period of time.

Note that if the drawer is manually opened (with the drawer key) the program has no way to know the drawer was opened and does not make any entry in the log. Also, there is of course no way to know what the cashier did when the drawer was opened (e.g., making change, adding funds, removing funds, etc.) so the drawer log is of limited value as an auditing tool.

Audit Receipt Header/Detail/Payments

RASWIN records transaction data into three separate tables... Receipt HEADERS, DETAILS and PAYMENTS. At a minimum, a receipt must consist of at least one of each of these record types.

For a receipt with multiple line items, there will be one DETAIL record for each line.

If there are multiple payments, there will be one record in the PAYMENTS table for each payment.

This Audit function checks to make sure all the proper records are present and provides a list of any missing records. This can occur if a transaction is interupted due to a power failure or other program crash.

Validate Header Totals

Similar to the previous report, this one checks the values stored in the Receipt Headers to insure that the 'summary' values stored are valid. For example, the total of each DETAIL fee, is summed and compared to the TOTAL DUE on the receipt HEADER record. If exceptions are found, they are corrected. This process can take quite some time if your database contains lots of records, which a normal production database will.

Accounting Date Changes (Last 30 Days)

This option permits you to do a quick review of changes to the accounting date made by your users for the last 30 day period. You have the option to look at ALL registers, or just a single register. It will not take long to create the report, which you can view or print, as required. In most environments you would expect to have one change of accounting date per calendar day. Forgetting to change the accounting date is the most common error users make, especially when first starting to use RASWIN.

Security Matrix

This option permits you to display which reports and tables a user has access to based on their security level. It can be run for only one user at a time. The report looks like this: For space reasons, the full report is not shown above. The first portion shows which reports the user is permitted to run, and the second section shows which tables they are permitted to maintain (if they are allowed to maintain tables at all).
